About This

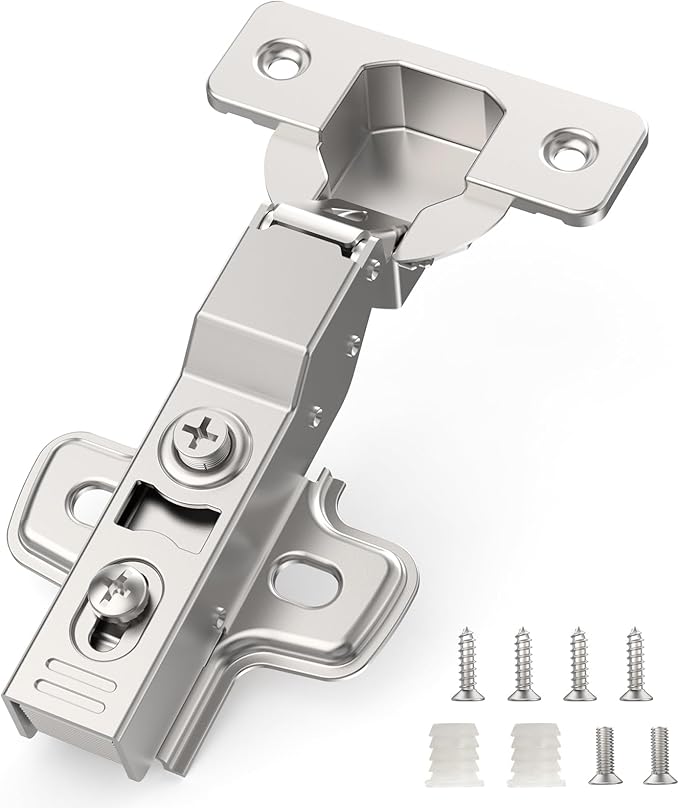

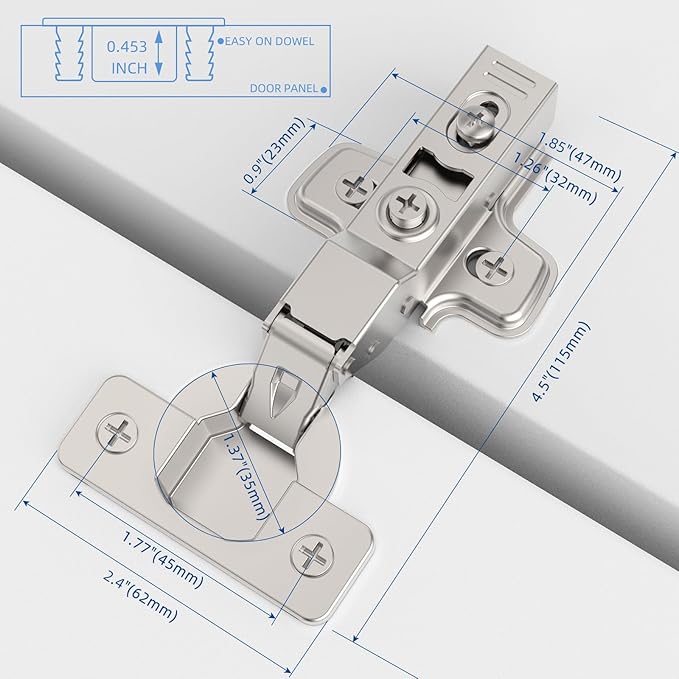

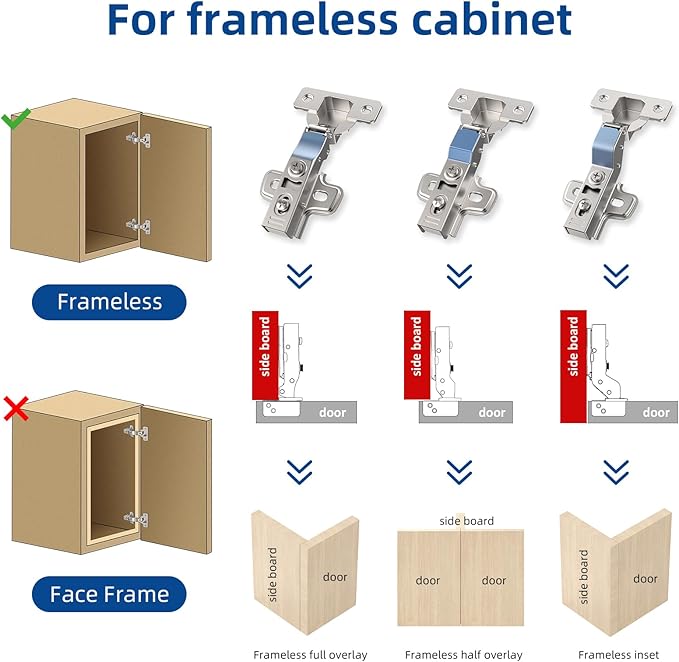

• Installation Specification - Cup depth: 11.5mm; Screw holes distance: 45mm; Opening angle: 85 ＆ 105 degrees; The range of door thickness is 14-22mm, suitable for most cabinet door styles. Each hinge comes with 2 easy-on dowels and 4 self-tapping wooden screws to ensure a perfect fit. Each euro style concealed kitchen cabinet hinge is fit for frameless cabinets.
• ​​SOFT CLOSE CABINET HINGE - Each cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports SMALL SOFT CLOSE ANGLE, which can better protect your finger.
• ​​Stop at any angle after 45° - Cabinet hinges can stop at any angle after the cabinet door is opened at an angle greater than 45°. This means that you don't need angle clips when your cabinet door is near the wall, and you can still open it at different angles according to your needs. When the opening angle is less than 45°, the cabinet door self-closing.

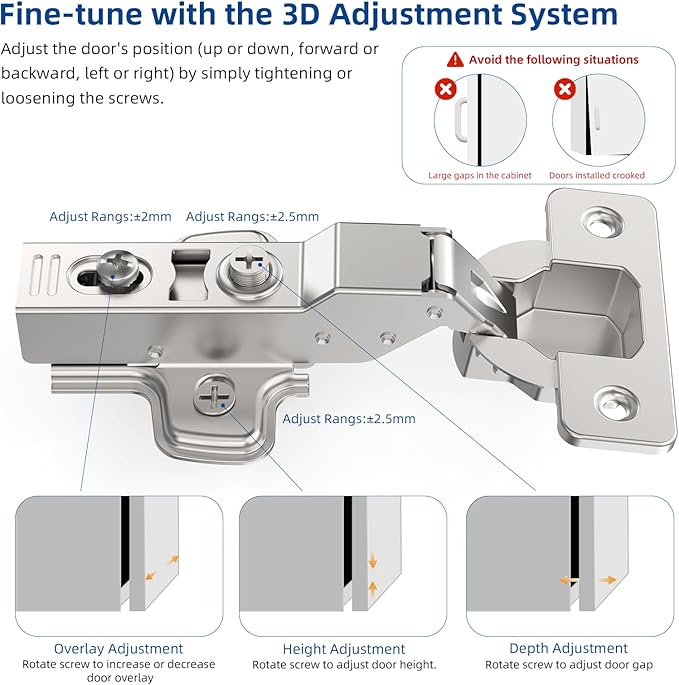

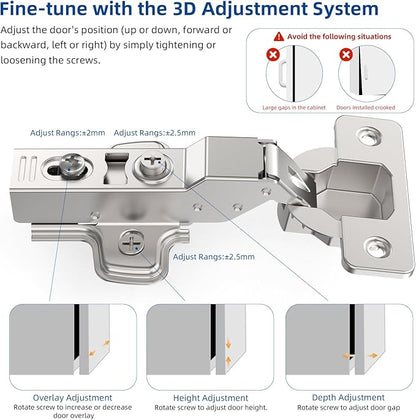

• ​​3D Adjustable Upgrade - 3D hinges can adjust the cabinet door just by turning a screwdriver (Vertical, Horizontal, Depth), which will make sure that your new custom-made cabinet doors don't sag, align properly, and will open and close smoothly.
• ​​High Quality and Reliable - Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, and SGS. The hinge can withstand more than 80,000 times of opening and closing and can withstand 48 hours of salt spray test. If you encounter any problems during use, feel welcome to connect with us at any time. We will provide the most attentive service.

Overview

• Material : Alloy Steel
• Brand : Chibery
• Finish Type : Nickel
• Mounting Type : Flush Mount
• Unit Count : 30.0 Count
• Color : Satin Nickel
• Manufacturer : Chibery
