About This

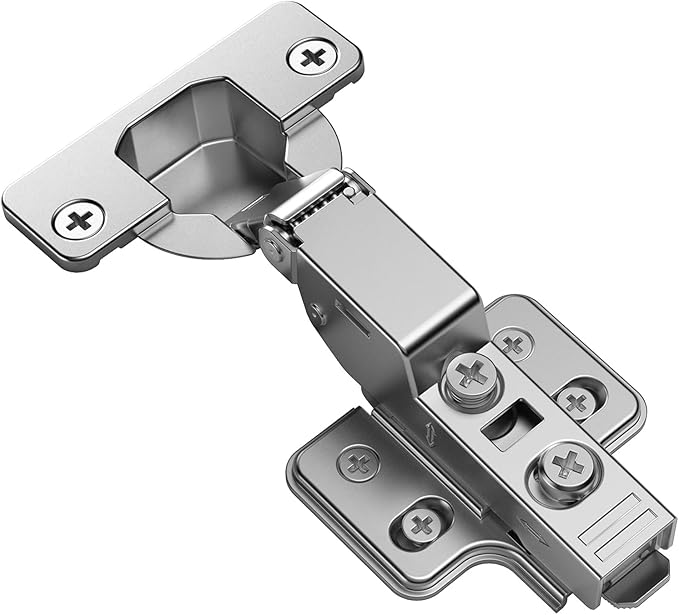

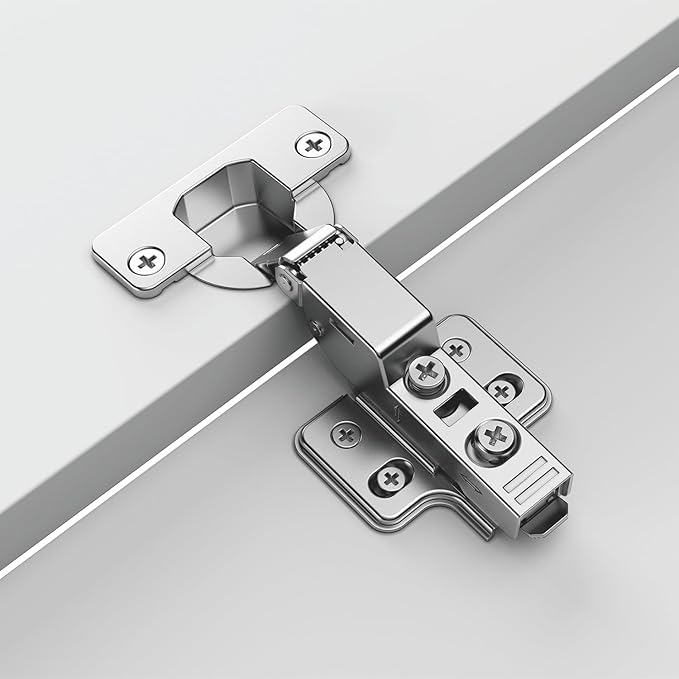

• Half Overlay Soft Close Cabinet Hinges: The soft closing hinges constructed from high-quality stainless steel with a nickel-plated, are Strong, Durable, Rust Resistant, create a gentle and smooth, self-closing motion that eliminates slamming noise and protecting the cabinet door.

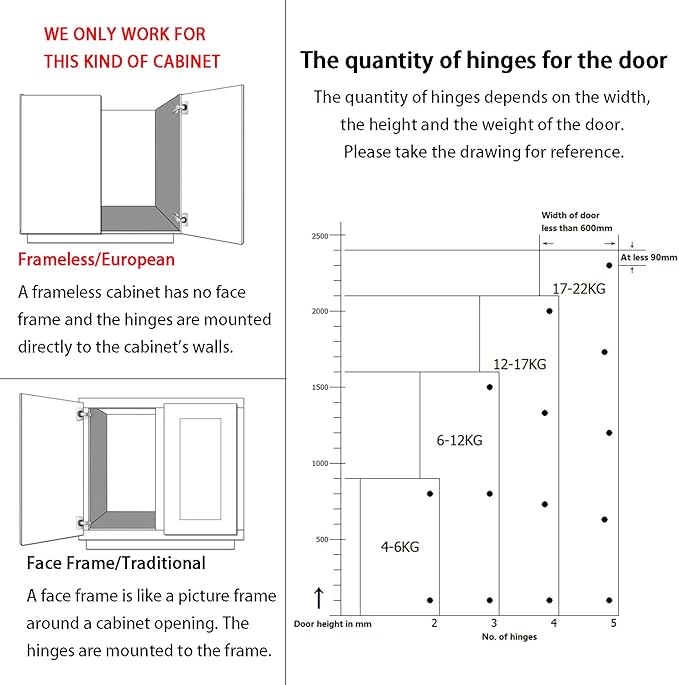

• 3D Smart Adjustment: Our Concealed Kitchen Cabinet Hinges designed for standard Frameless Cabinets,. These frameless soft close Cabinet Door Hinges are three-dimensional adjustment for adapting to the base. It means you could adjust up and down, left and right, front and back.
• Small Angle Buffer: These Soft Close Concealed Hinges have a integrated mini metal quiet cushioning system and the door can free stop at 45-110Deg. When the cabinet door is lower than 10Deg it can be buffered to close the door gentlyand prevent hand clamping. Small angle buffer Close the door gently, safely and quietly.

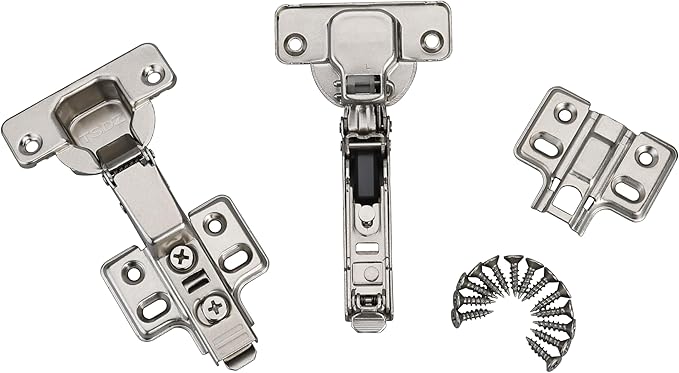

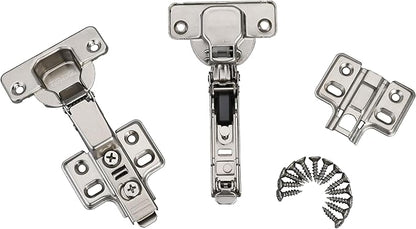

• Easy Installation: Simply mount the hinge to the door, the clip-on plate to the cabinet and then clip them together, with our Spiral-Cam Screw can saving 50% of the installation and adjustment time than ordinary hinges.

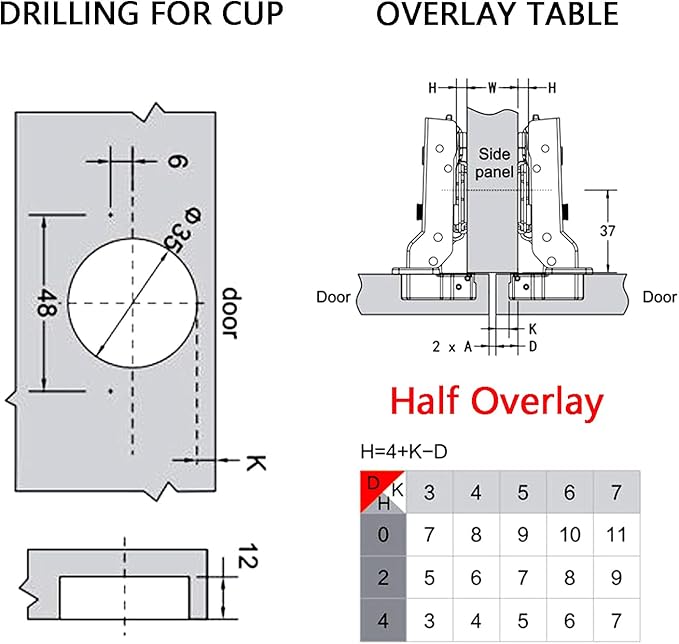

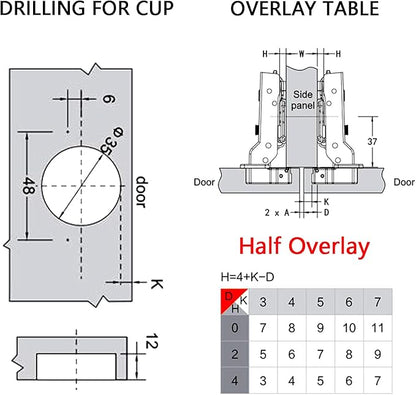

• Key Specifications: The Cabinet Door Hinges come with manual, Cup Diameter—35mm, Opening Angle—110 Degree, Drilling Depth—12mm, Drilling Distance from Door Edge to Cup Edge—5mm, Range for Door Thickness—16-23mm, Cup Screw Hole Distance—48mm, Closing Type—Clip-On Three Way Soft Close.

Overview

• Material : Alloy Steel
• Brand : Kimdot
• Finish Type : Nickel
• Mounting Type : Door Mount
• Hole Count : 2
• Color : Half Overlay
• Manufacturer : Kimdot
