About This

• Full overlay type: The euro-style concealed kitchen cabinet hinge fit for full overlay doors on frameless cabinets. The cabinet door cover the cabinet almost completely with a 1/4inch of space between the doors or drawer It’s not fit for face frame cabinet

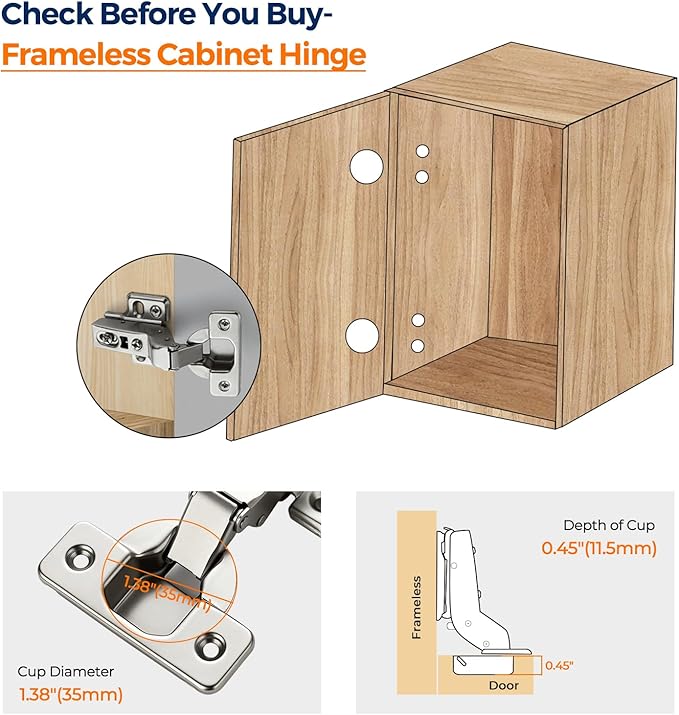

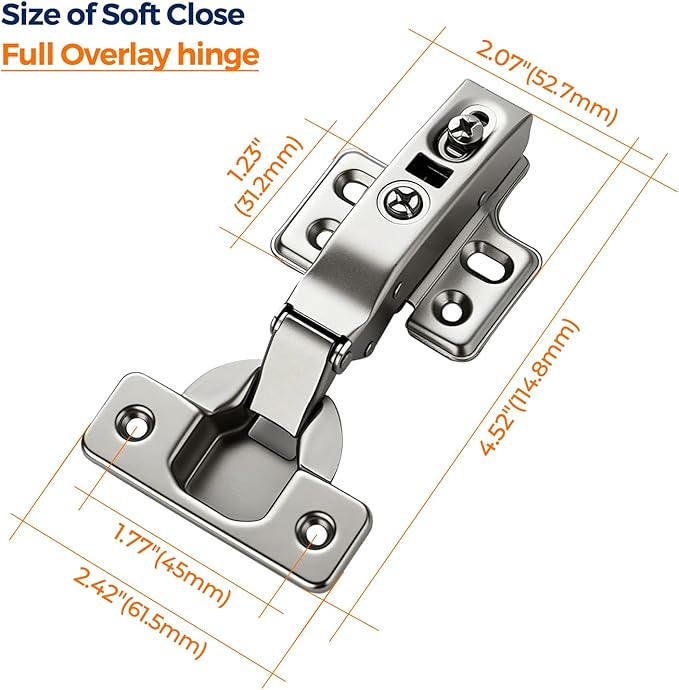

• Installation specification: Diameter of the cup is 35mm, depth of the cup is 11 5mm, screw holes distance on the door is 45mm And the range of door thickness is 14-22mm Opening degree:105 degree

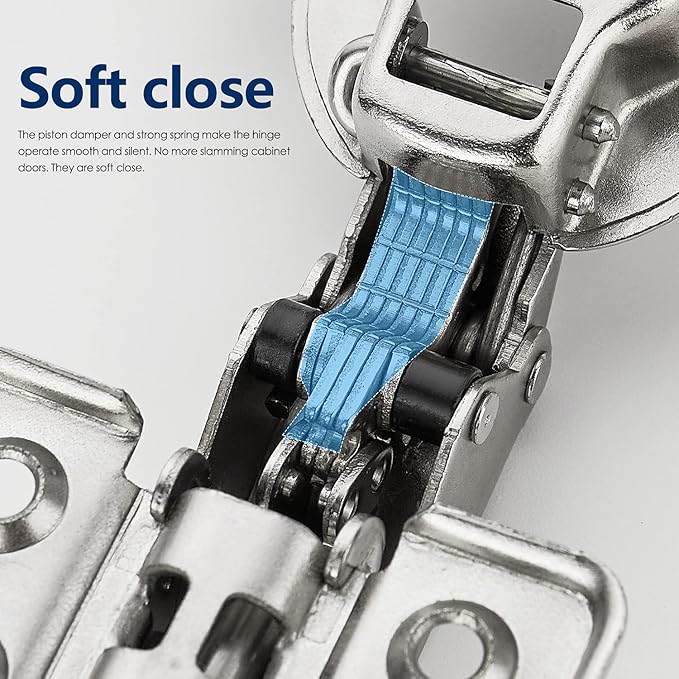

• Soft close: The piston damper and strong spring make the hinge operate smooth and silent No more slamming cabinet doors They are soft close

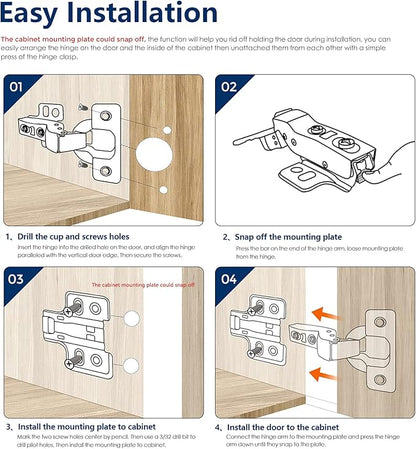

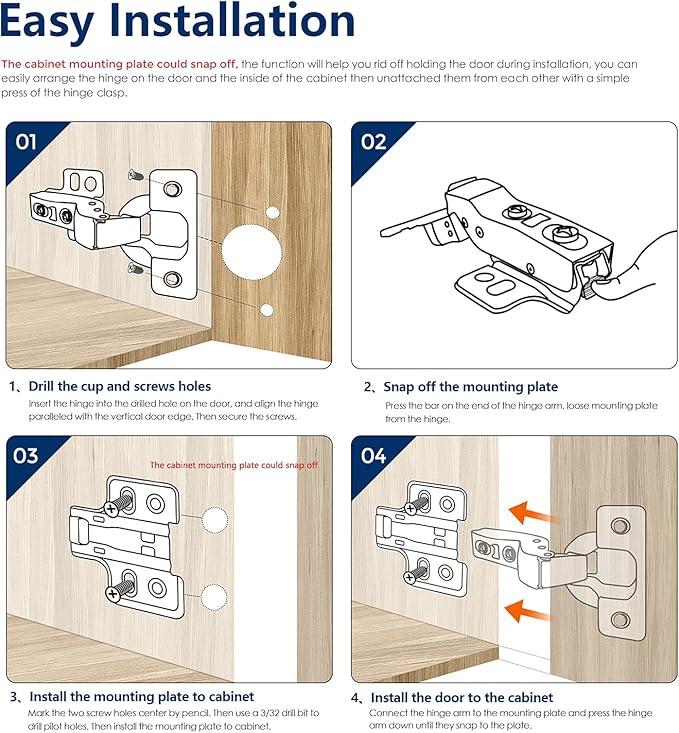

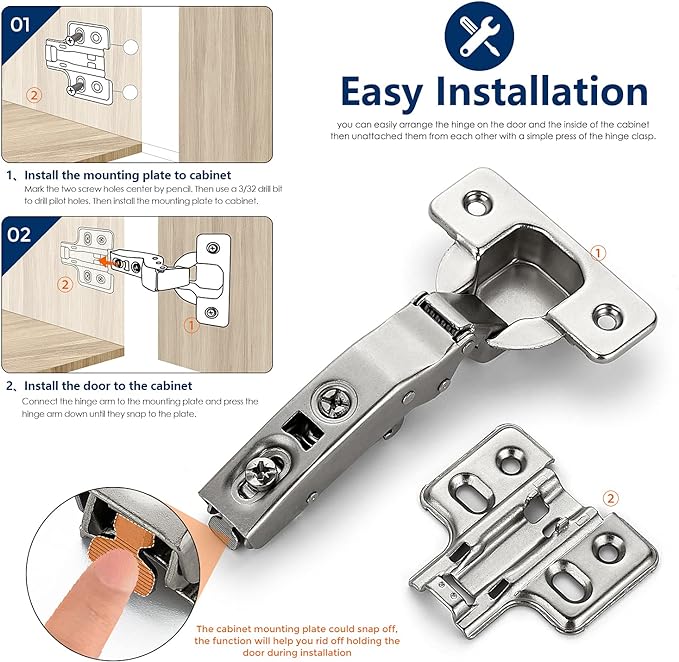

• Easy Installation: The cabinet mounting plate easily detaches, allowing you to position the hinge on the door and cabinet separately. A simple press of the clasp reattaches them, simplifying the process without needing to hold the door in place

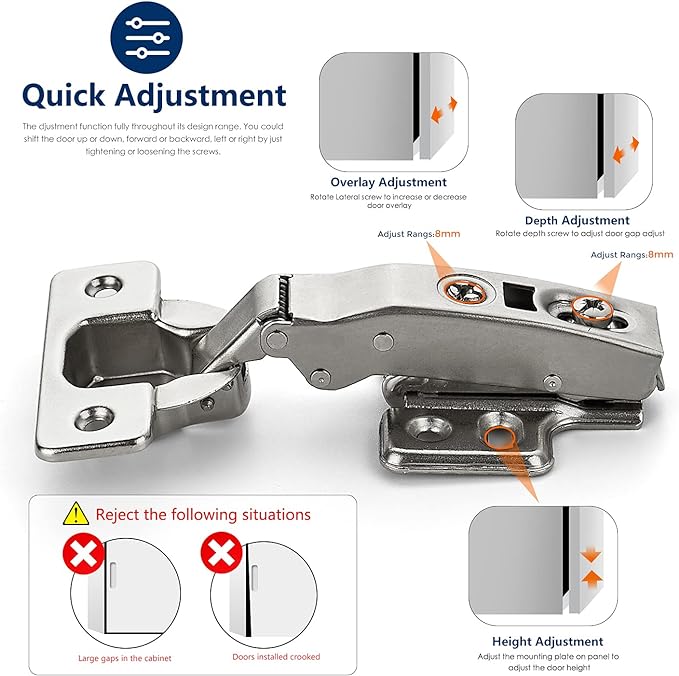

• Quick adjustment: The adjustment function fully throughout its design range You could shift the door up or down, forward or backward, left or right by just tightening or loosening the screws

Overview

• Material : Metal
• Brand : Ravinte
• Finish Type : Satin Nickel
• Mounting Type : Door Mount
• Hole Count : 8
• Unit Count : 4.0 Count
• Color : ‎Satin Nickel
• Manufacturer : Ravinte
